SY-F61 NDT Testing Equipment 0.01mm Smart Crack Width Tester

Product Categories
Beijing Samyon Instruments Co., Ltd.
Contact Now

SY-F61 NDT Testing Equipment 0.01mm Smart Crack Width Tester

  • 1
  • 2
  • 3

Brand Name : SAMYON

Model Number : SY-F61

MOQ : 1 set

Price : can be negotiated

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999/mth

Delivery Time : 3-5days

Packaging Details : carton

Certification : ISO

Place of Origin : CN

Name : Concrete crack width tester

Standard : CECS 21:2000

Crack width test range : 0 ~ 8mm

Width Test accuracy : 0.01mm

Data storage capacity : store more than 100,000 data

Power : Rechargeable Li battery

Contact Now

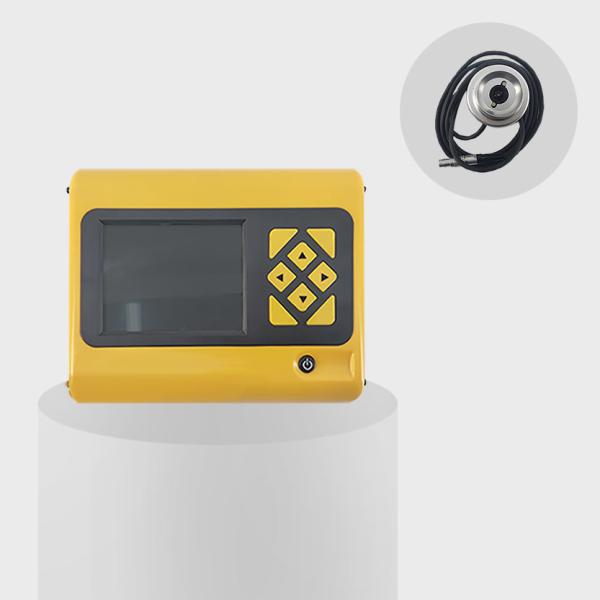

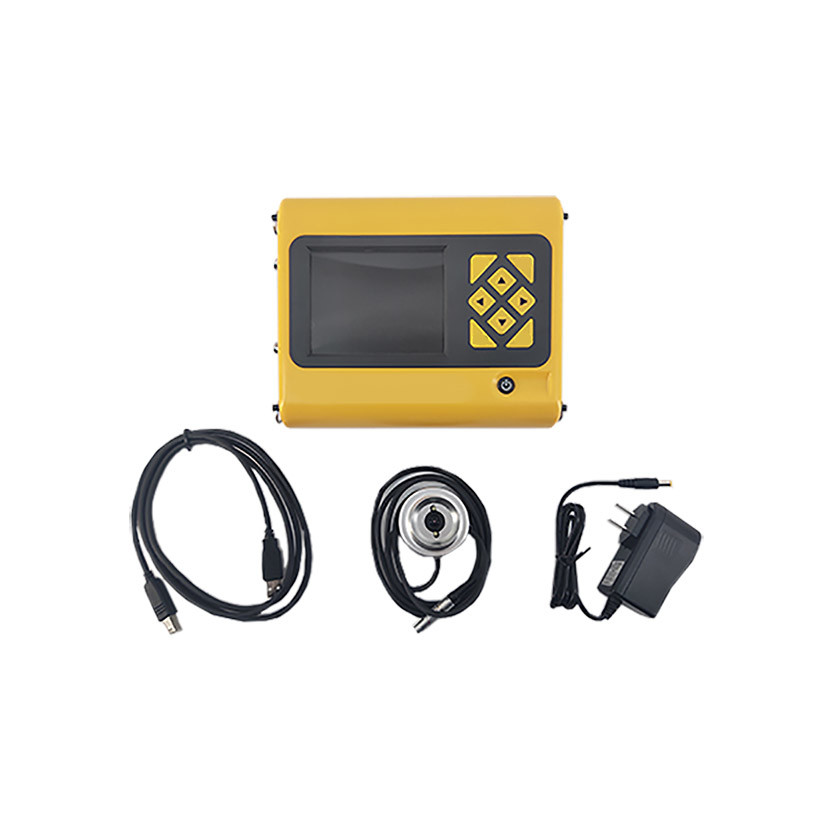

SY-F61 Smart Crack Width Tester For Testing The Crack Width By High Precision Camera

SY-F61 Smart crack width tester

Application: used to test the surface crack width of different materials (such as concrete structures, bridges, railway, tunnel, and so on). It is one smart nondestructive testing equipment for testing, storage, and transmission.

Standard:

CECS 21:2000 Technical specification for inspection of concrete defects by ultrasonic method

Parameters:

Item Name Details
1 Crack width test range 0 ~ 8mm
2 Width Test accuracy 0.01mm
3 Data storage capacity can store more than 100,000 cracks measured point data and image
4 Power Rechargeable Li battery
5 Operating temperature -10°C ~ +50°C
6 Main host dimension 208mmX168mmX85mm

Features:

1. Large-screen display: 5 "color LCD display with a resolution of 640 * 480;

2. The colorful camera has the direction mark, so it can easily put the camera vertically on the crack, then display it directly on the screen

3. Easy data transfer: the instrument can be directly connected to the computer, no need U disk.

4. Powerful professional windows data analysis processing software: data can be imported into Word and Excel, convenient and user-friendly post-processing of data.

SY-F61 NDT Testing Equipment 0.01mm Smart Crack Width Tester


Product Tags:

NDT Testing Equipment 0.01mm



SAMYON NDT Testing Equipment



0.01mm Smart Crack Width Tester


SY-F61 NDT Testing Equipment 0.01mm Smart Crack Width Tester Manufactures

SY-F61 NDT Testing Equipment 0.01mm Smart Crack Width Tester Images
