2000KN 3000KN Tensile Compression Testing Machine For Concrete

Product Categories
Beijing Samyon Instruments Co., Ltd.
Contact Now

2000KN 3000KN Tensile Compression Testing Machine For Concrete

  • 1
  • 2

Brand Name : SAMYON

Model Number : YES

Certification : ISO

Place of Origin : CN

MOQ : 1 set

Price : can be negotiated

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999/mth

Delivery Time : 3-5days

Packaging Details : Wooden case

Name : Concrete compression testing machine

Standard : ISO 6892-1-2019

Max test force : 2000KN-3000KN

Testing force : 4% ~ 100%FS

Piston stroke : 30 and 50

Piston diameter : φ250-φ310

Contact Now

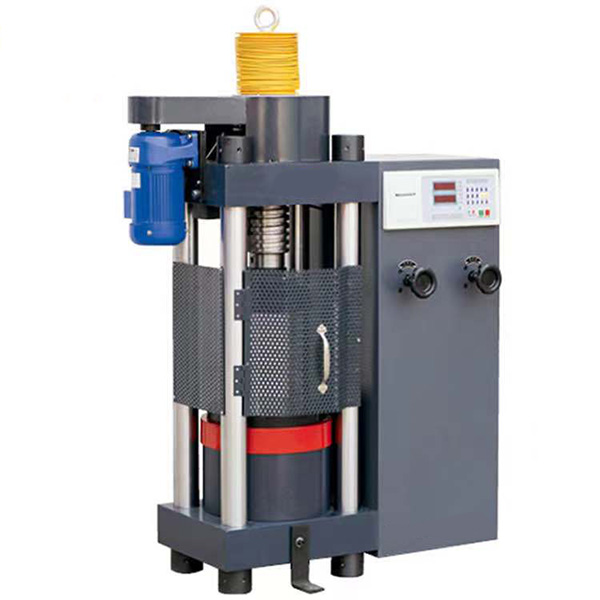

YES Compression Testing Machine (Manual Lead Screw/Electronic Lead Screw)

Application:
It is mainly used for testing compression strength of the concrete. The control method of the rate testing is manual control. It has two method for the screw moving, manual screw or electronic screw movement.

Standard:
BS, ISO, ASTM ,GBT, EN

Parameters:

ModelYES-2000 manual screwYES-2000 electronic screwYES-3000 electronic screw
Max test force2000KN2000KN3000KN
Testing force range4% ~ 100%FS
Value display relative error=< +/-1% / +/-0.5%
Lead screw adjustment methodManual screwElectronic screwElectronic screw
Pressure plate dimension(mm)φ225, φ300260*300370*370
Max space of pressure plate(mm)320320330
Max piston stroke(mm)303050
Piston diameter(mm)φ250φ250φ310
Rated pressure of the hydraulic pump(mpa)404040
Source power(KW)3phases 0.753phases 0.753phases 1.1
Load frame size(mm)800*500*1200800*500*12001000*600*1500
Total weight(kg)7507501800

Features:
1. Famous brand sensor configuration(sensor of Class 0.5 is from world famous brand, while sensor of Class 1 is from domestic famous brand) to keep high precision and stability
2. The stress is ten thousandth control accuracy, with high testing rate control accuracy, conforming to the Standard of ISO 6892-1-2019
3. Unit taking part in the drafting of Verification Regulation of Electro-hydraulic Servo Universal Testing machines for JJG 1063-2010

2000KN 3000KN Tensile Compression Testing Machine For Concrete
