0 - 100℃ Petroleum Testing Equipment 550W WNE-1A Engler Viscometer Apparatus

Product Categories
Beijing Samyon Instruments Co., Ltd.
Contact Now

0 - 100℃ Petroleum Testing Equipment 550W WNE-1A Engler Viscometer Apparatus

  • 1
  • 2

Brand Name : SAMYON

Model Number : WNE-1A

Certification : ISO

Place of Origin : CN

MOQ : 1set

Price : Can be negotiated

Payment Terms : Western Union, MoneyGram, , T/T, D/P, D/A

Supply Ability : 100sets per week

Delivery Time : 3-5days

Packaging Details : Carton

Name : Viscometer

Standard : ASTM D1665-98

Temperature range : 0-100℃

Standard water value : 51+/-1s

Measuring flask : 200+/-0.2ml

Inner crucible : stainless steel material

Contact Now

WNE-1A Engler Viscometer With Digital Display Function

Application:

It is used to determine the rate of time(seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20℃ under certain temperature and cubage. This rate is the Engler viscosity. Unit is Engler degree.

Standard:

GB/T 514-2005 Specification for liquid-in-glass thermometers for testing of petroleum products

ASTM D1665-98 Standard test method for Engler specific viscosity of tar products

GB 266-88 Petroleum products – determination of engler viscosity

Parameters:

Item Name Details
1 Temperature range 0-100℃
2 Standard water value 51+/-1s
3 Temperature control accuracy +/-0.2℃
4 Engler viscosity thermometer correspond with GB/T 514
5 Inner crucible stainless steel material
6 Specification of measuring flask 200+/-0.2ml
7 Accuracy of electric stopwatch 1/100s
8 Power of electric heater 550W
9 Power supply AC 220+/-10% V, 50Hz
10 Dimension 200x200x400mm

Features:

1. The temperature controller adopts digital display type. The parameters set is convenient. The temperature controlling precision is high.

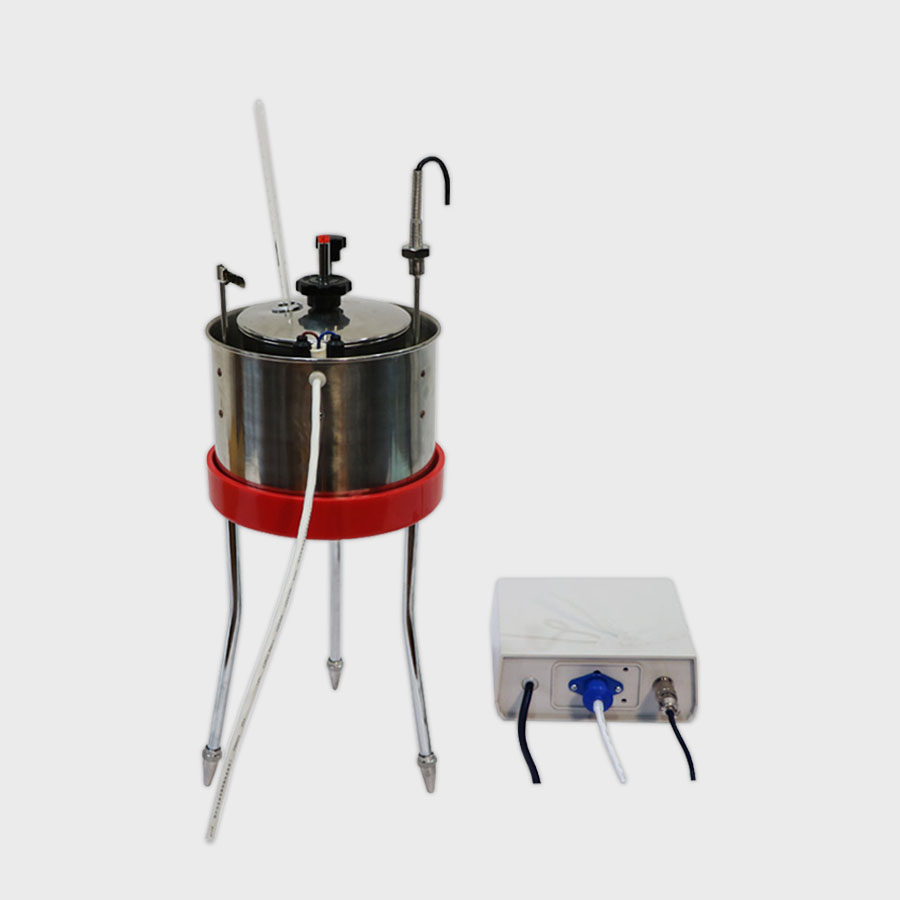

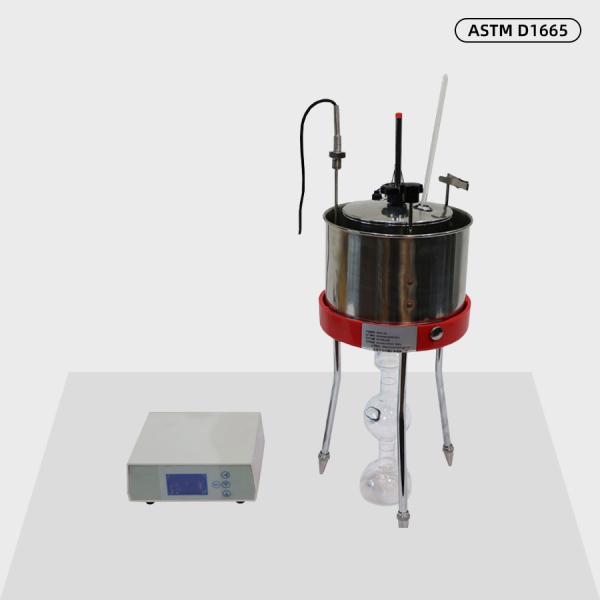

2. The instrument is composed of tester and temperature controller. Desktop structure. Both of inner and outer crucible adopt stainless materials. Inner crucible has been specially processed. The smooth finish corresponds with the test requirements.
